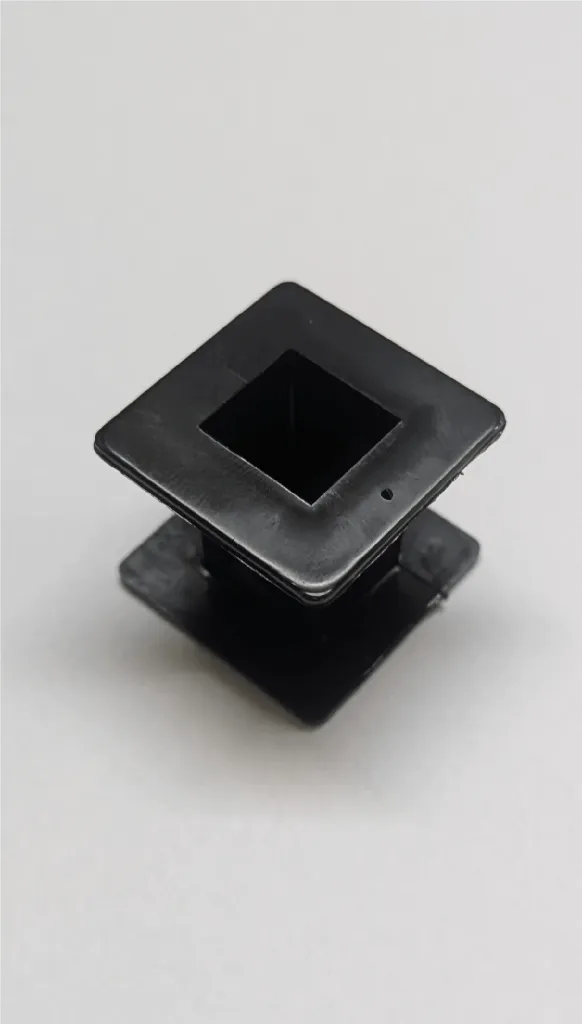

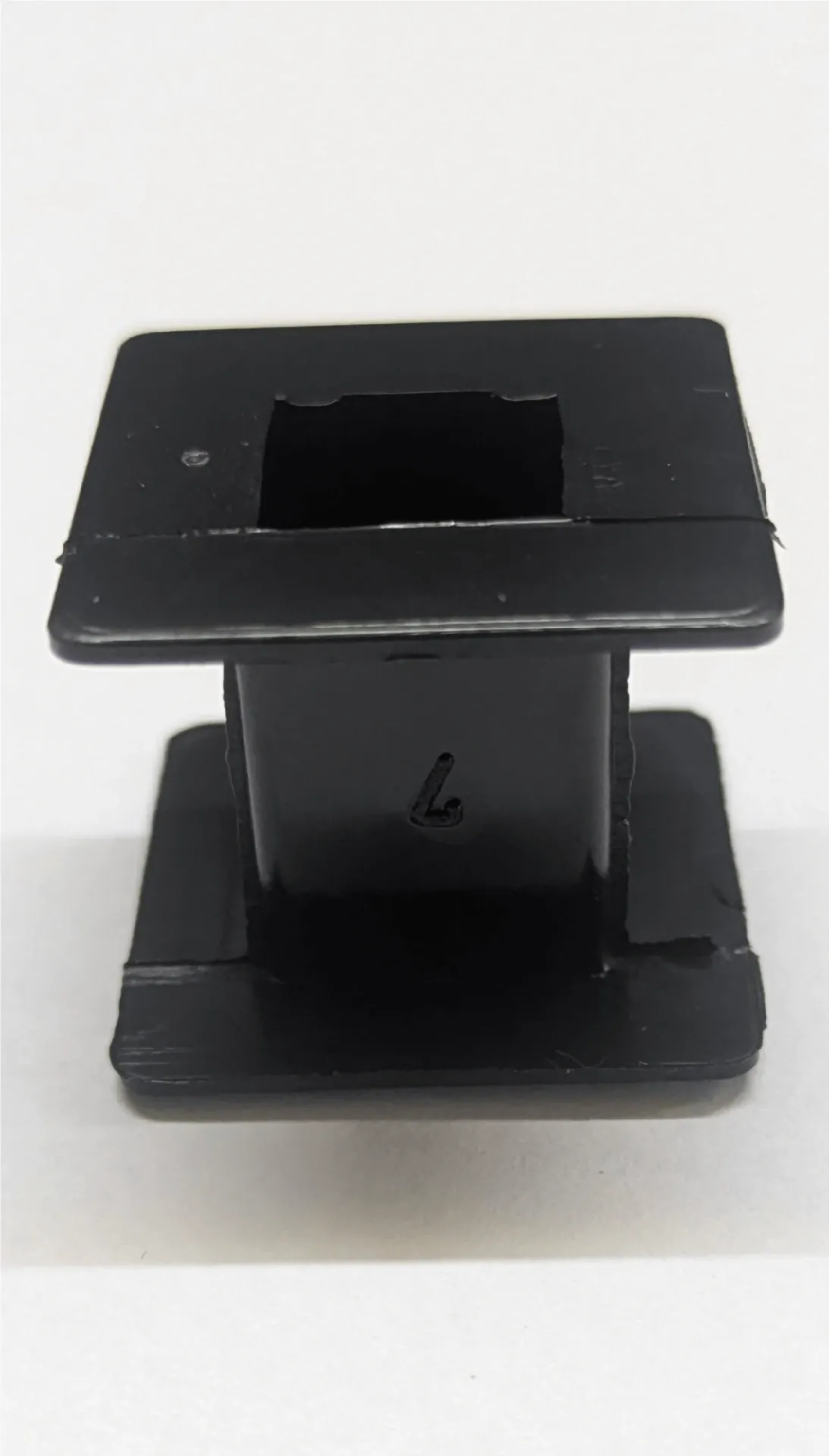

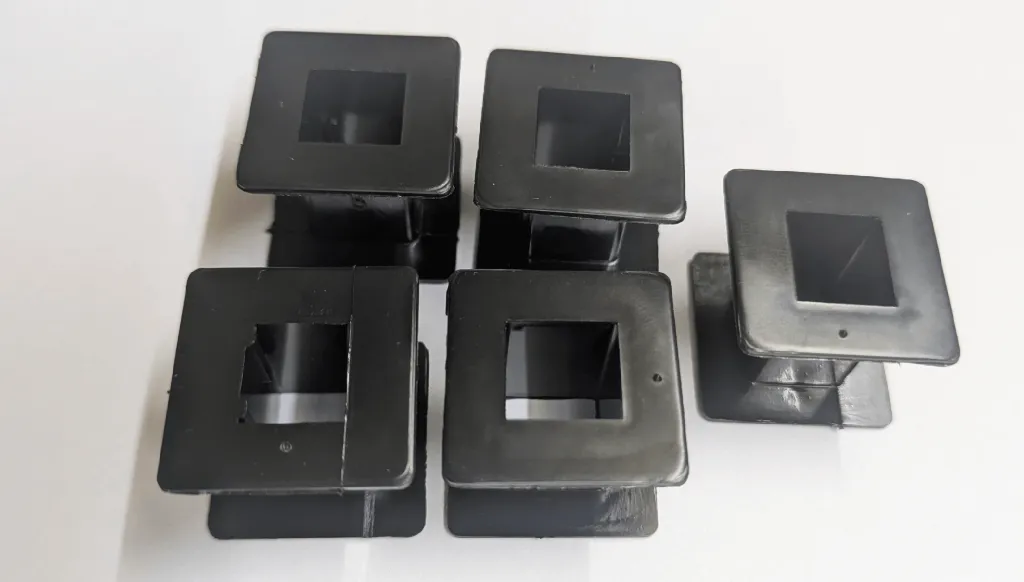

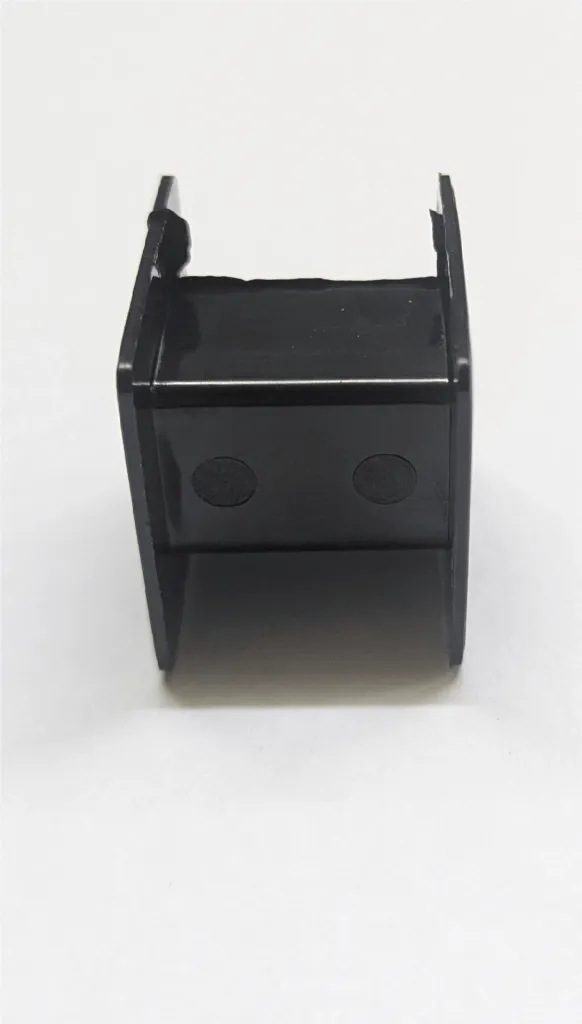

We are a leading manufacturer and supplier of precision-molded transformer bobbins, designed to meet the high-performance requirements of electrical and electronic applications. The product shown is a high-quality plastic bobbin specifically used for winding wire coils in transformer assemblies.

Product Details:

• Type: Transformer Bobbin

• Material: High-temperature grade thermoplastic (such as Nylon, Glass-Filled Nylon, or PBT)

• Shape: Square Core with Dual Mounting Flanges

• Color: Black (custom colors available on request)

• Usage: Suitable for low-frequency and high-frequency transformers

• Material: Nylon

• Usage/Application: Transformers

• Shape: Square

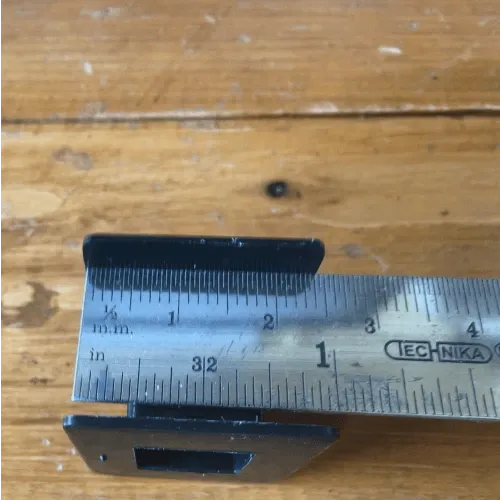

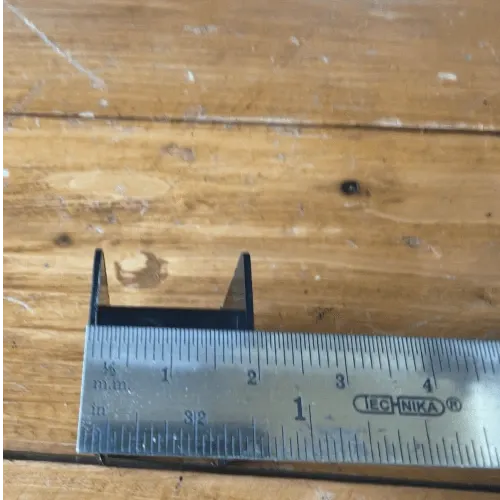

• External Size: W 2.3mm x L 2.3mm x H 2.0mm

• Internal Size: W 1.74mm x L 1.0mm x H 2.20mm

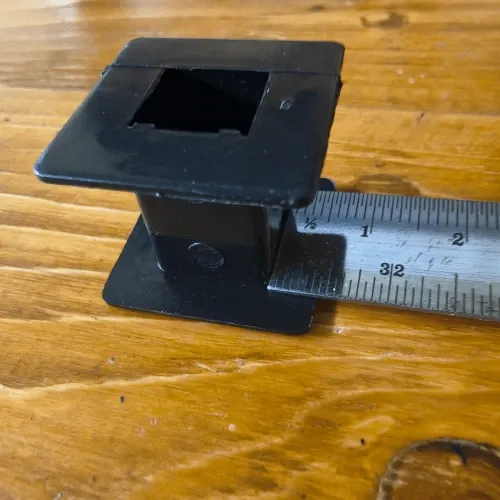

• Winding Size: 0.5mm

Key Features:

• Excellent dielectric strength and insulation properties

• High mechanical stability and dimensional accuracy

• Resistant to heat, chemicals, and moisture

• Precision-tooled for automated or manual coil winding

• Available in multiple pin and mounting configurations

• RoHS-compliant materials used

Applications:

• Power transformers

• SMPS (Switch Mode Power Supply)

• Inductors and choke coils

• Telecommunication equipment

• Consumer and industrial electronics

Customization Options:

• Size and winding window dimensions

• Mounting hole placements

• Pin configuration and lead slots

• Material grade based on voltage and temperature requirements

We provide bulk manufacturing, tool development, and custom molding services for transformer bobbins. Our components are trusted by transformer OEMs and electronics manufacturers across India.

Contact us today for specifications, pricing, and sample support.
